Initial beam parameters

Full Monte Carlo dose verification system for external beam radiotherapy

Intuitive and hassle-free graphical user interface

Initial beam parameters for Elekta MLCi linacs: suggested initial beam parameters for the simulation of Elekta MLCi linacs with PRIMO version 0.1.5.1307.

Based on computations and experiments carried out by Alessandro Esposito(1), Miguel Rodriguez(2) and Lorenzo Brualla(3)

(1) Princess Alexandra Hospital, Brisbane, Australia

(2) Hospital Paitilla, Panama

(3) Westdeutsches Protonentherapiezentrum Essen, Germany





Initial bean parameters table 4
Elekta MV

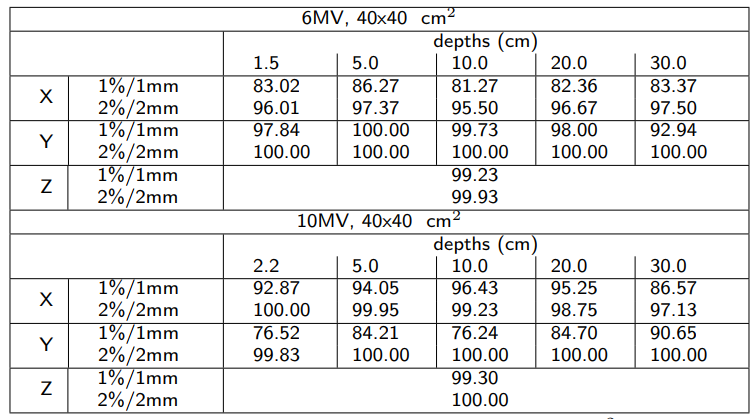

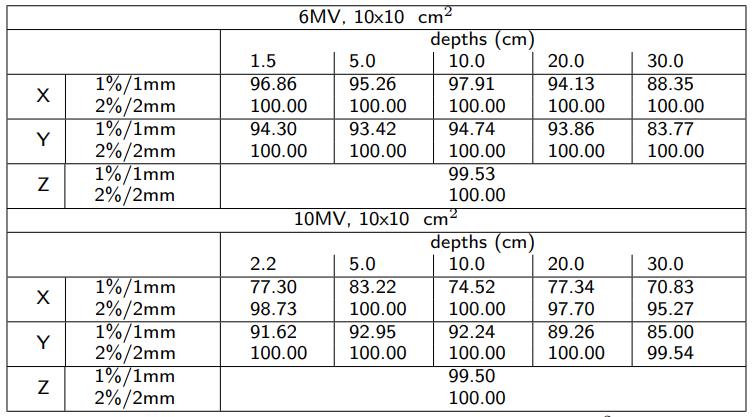

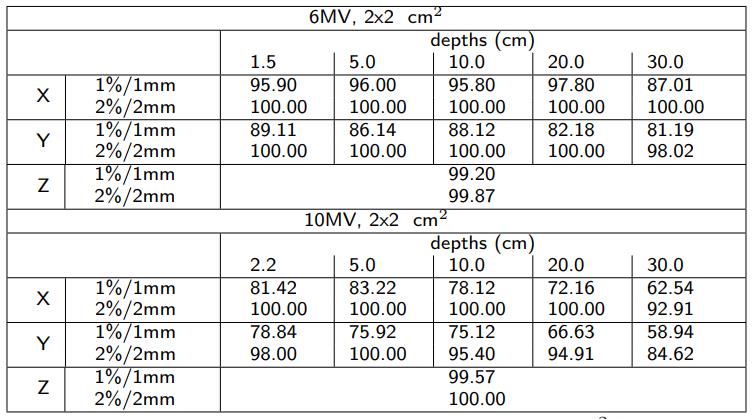

Gamma analysis for reference fields 2×2, 10×10 and 40×40 cm2. Reference data set: experimental data. Evaluated data set: PRIMO simulation with initial beam parameters given in the table on the left column.

Initial bean parameters table 3
Initial bean parameters table 2
Initial bean parameters table
